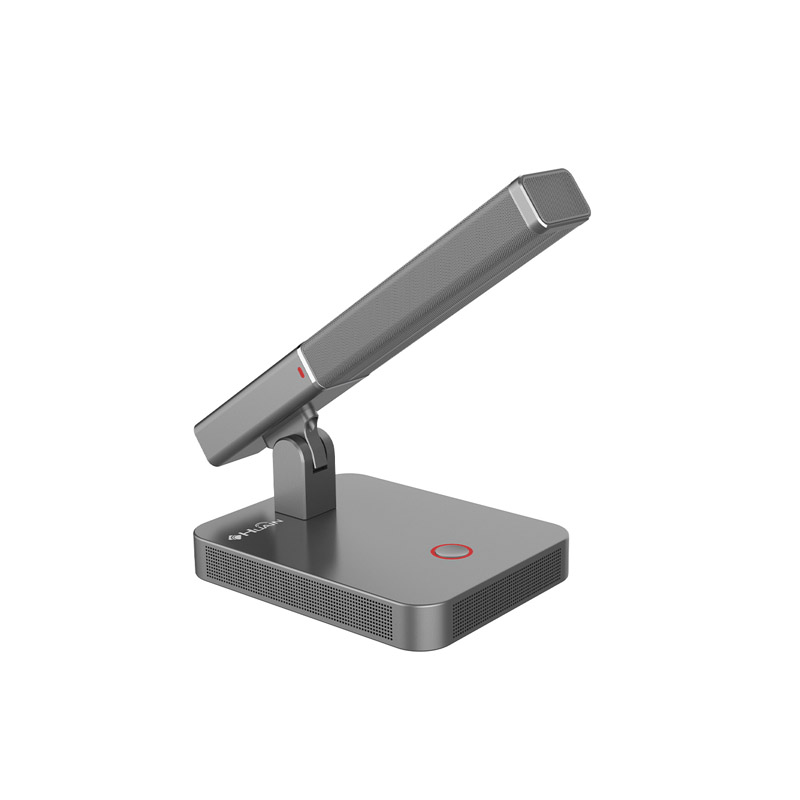

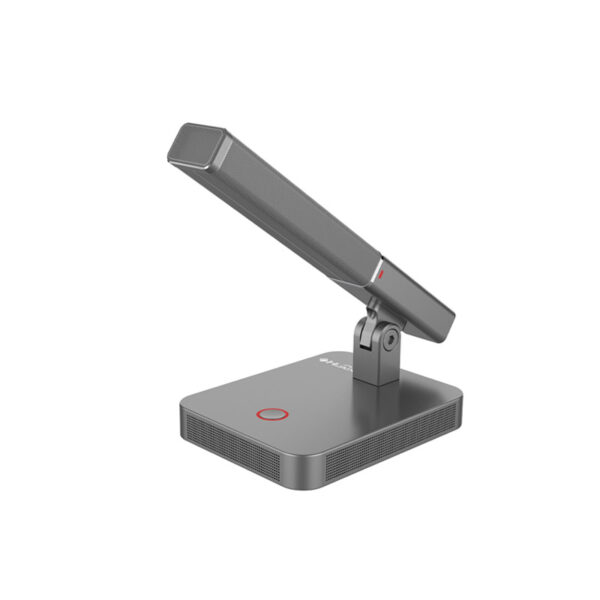

HY-SS330D Anti Recording Double diaphragm Digital Conference Unit

· Comply with GB4943.1-2022
· 2 x 14mm gold-plated condenser double-diaphragm pickup head
· Noise canceling pickup
· Camera tracking



Description

Features:

· Dual-diaphragm pickup head, 14mm gold-plated microphone core, high-fidelity lossless sound quality.
· Ready to use upon startup, prevents recording by devices such as recording pens and recorders, as well asvideo recording.
· Utilizes independently developed ultrasonic interference and diffraction technology, with a built-inultrasonic mixer.
·  Features anti-eavesdropping functionality to prevent abnormal audio recording by unauthorized devices.
· Equipped with 360-degree omni-directional acoustic shielding design, effectively blocking recording equipment, no electromagnetic radiation to ensure safety.
· Dual independent switch control for independent control of conference speech and ultrasonic activation, suitable for a variety of conference scenarios.

Model of anti recording conference system:

HY-M14D— Recording shielding box for mobile phone

HY-M20D— Desktop Anti Recording Blocker

HY-M60D— Cell phone signal jammer

Parameters

Model HY-SS330D Series
Conformity standard IEC 60065 international standard
Shielding Angle 360° omnidirectional
Microphone Type Cardioid electret,14mm gold-plated core
Frequency Response 30Hz~20KHz
Signal-to-Noise Ratio >92dB
Dynamic Range 98dB
Total Harmonic Distortion < 0.05%
Microphone Sensitivity -35dB±2dB
Operating Voltage 24V DC±5%
Operating Current 1000mA ±5%
Connection Method Distribution box, ring handles
Connector 6-pin and 3-pin
Number of unit openings 1-20 or all
Numbering function Customizable ID number
Unit Power Consumption 19W
Equivalent Noise 20dBA (SPL)
Maximum Sound Pressure Level 136dB (THD<3%)
Anti-Theft Function yes

Application Cases

The HUAIN global conference program serves 30+ countries and regions, and has been successfully applied in large-scale conferences such as China International Fair for Import and Export and Hongqiao International Economic Forum, Davos Forum, World Intelligence Congress, Latin American Entrepreneurs Summit Conference, China-Russia Media Forum, World Military Games, and so on.
