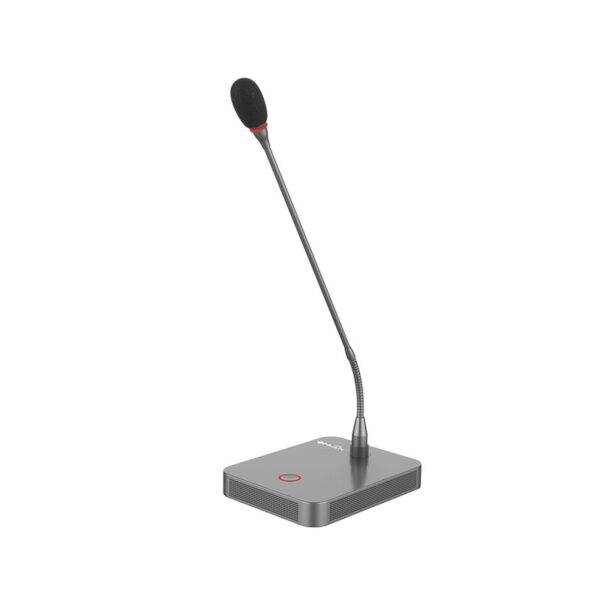

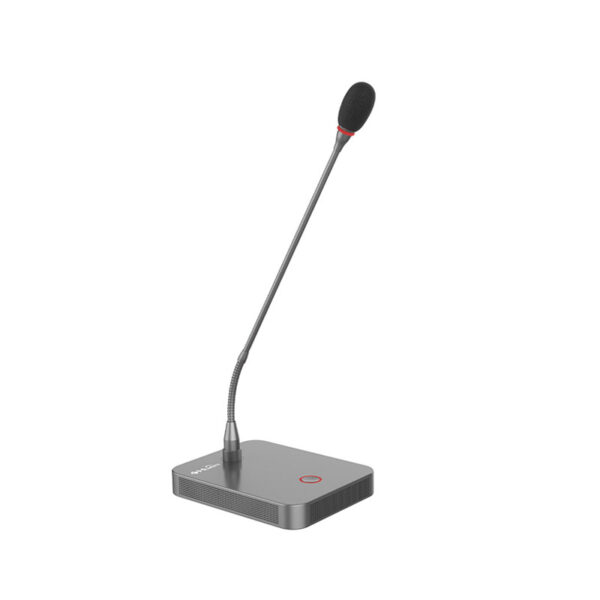

HY-SS320D Anti Recording Digital Conference Unit

· Comply with GB4943.1-2022
· High fidelity 9.7mm gold-plated condenser pickup head
· Noise canceling pickup
· Camera tracking



Description

Features:

· Digital signal transmission and processing.
· High-fidelity lossless audio transmission technology, frequency response up to 30Hz-20KHz.
· Automatic gain AGC function, effective pickup distance up to 50-60cm.
· Microphone noise suppression circuit system.
· Self-developed ultrasonic interference and diffraction technology, with anti-stealing function.
· 360° omnidirectional acoustic shielding design.
· Material is aviation grade aluminum alloy body, built-in 18 * 14mm ultrasonic interferometer.
· 18mm round speaking indicator.
· Three color indication display, normal speak for red, VIP unit speak for green, numbered state for yellow.
· Intelligent audio detection function.
· Eight conference modes.
· Number of speakers can be set from 1-20.
· The representative unit can be set as the chairman unit by long-pressing the speech button.
· Dual backup design can double guarantee the audio signal.

Model of anti recording conference system:

HY-M14D— Recording shielding box for mobile phone

HY-M20D— Desktop Anti Recording Blocker

HY-M60D— Cell phone signal jammer

Parameters

Model HY-SS320D Series
Conformity standard IEC 60065 international standard
Shielding Angle 360° omnidirectional
Microphone Type Cardioid electret, 9.7mm gold-plated core
Frequency Response 30Hz~20KHz
Signal-to-Noise Ratio >90dB
Dynamic Range 96dB
Total Harmonic Distortion < 0.05%
Microphone Sensitivity -37dB±2dB
Operating Voltage 24V DC±5%
Operating Current 950mA ±5%
Connection Method Distribution box, ring handles
Connector 6-pole and 3-pole
Number of unit openings 1-20 or all
Numbering function Customizable ID number
Unit Power Consumption 19W
Equivalent Noise 20dBA (SPL)
Maximum Sound Pressure Level 125dB (THD<3%)
Anti-Theft Function Availability
Weight 0.6Kg
Dimension 140×110×20mm (excluding microphone)

Application Cases

The HUAIN global conference program serves 30+ countries and regions, and has been successfully applied in large-scale conferences such as China International Fair for Import and Export and Hongqiao International Economic Forum, Davos Forum, World Intelligence Congress, Latin American Entrepreneurs Summit Conference, China-Russia Media Forum, World Military Games, and so on.
