Description
Feature：
· Aluminum alloy panel with Mohs 6 touch glass.
· 3.8/4.5 inch LCD Screen(4.5inch Model:HY-5800M5)
· 2.4G DSSS technology, coexists with WiFi, strong anti-interference.
· Digital transceiver separation, error correction, no data loss.
· 128-bit AES encryption, secure and private.
· 48KHz sampling, 20Hz-20KHz frequency response, CD-quality sound.
· Connects up to 256 Mics, expandable to 4096 Mics.
· DSP module for feedback suppression, equalizer, and gain control.
· Uses 2.4G communication cable, host powers transceiver.
· Built-in camera tracking, supports VISCA, PELCO-D, PELCO-P.
· Built-in video matrix 4×2/8×8(Optional), Audio In/Out:RCA X 2 ; XLR x 1.
· Built-in auto-video tracking,Automatic microphone tracking.
· Four modes: FIFO, Chairman, Timed, Limited.(FIFO mode: the last opened MIC covers the first open ed MIC)
· Real-time channel, ID, and battery display.
· Monitors battery status with percentage display.
· Quick volume adjustment keys.
· Expandable voting and data management functions.
· Supports up to 4 chairman units, priority function.
· High resistance to mobile interference.
· Balanced/unbalanced audio outputs.
· RS-232 connection, stable and secure control.
· Supports multi-party remote video conferencing.
· Anti-static and lightning protection, up to 8000V.

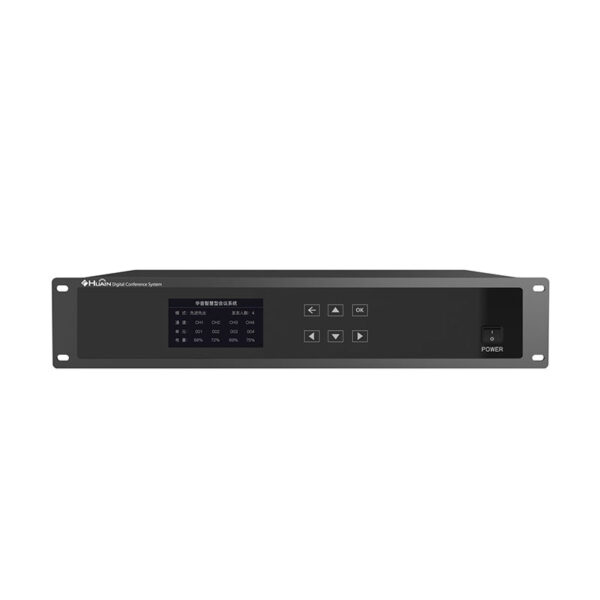

· Aluminum alloy body, 2U design, 19-inch rack mountable.
Compatible with the Microphone unit：
HY-5810C/D— 2.4 “LCD+Video+TYPE-C port charging+Speech timer+Built-in lithium battery
HY-5820C/D— 2.0″ LCD+Video+TYPE-C port charging+Speech timer+Built-in lithium battery
HY-5830C/D— 2.0” LCD + touch panel + video + with wireless charging (also USB charging) + speaking timer
HY-5840C/D— Touch glass panel+ 3.5 “LCD screen+wireless charging+USB charging+speech timing
