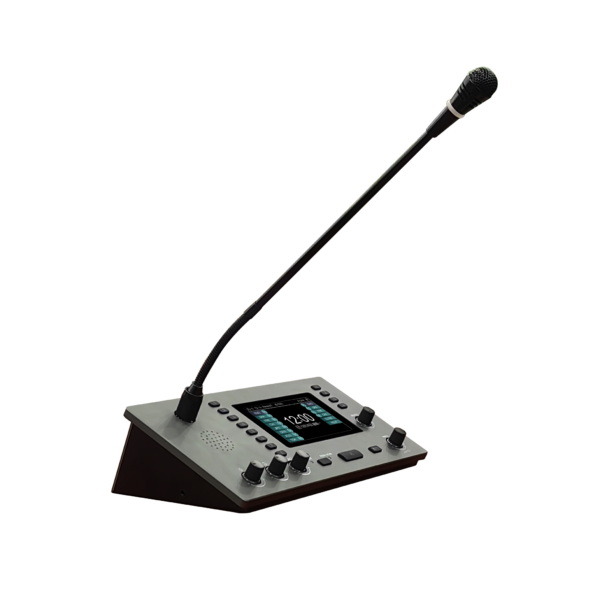

64 Channel Digital Simultaneous Interpreter Mic Desktop Console Interpreter Microphone

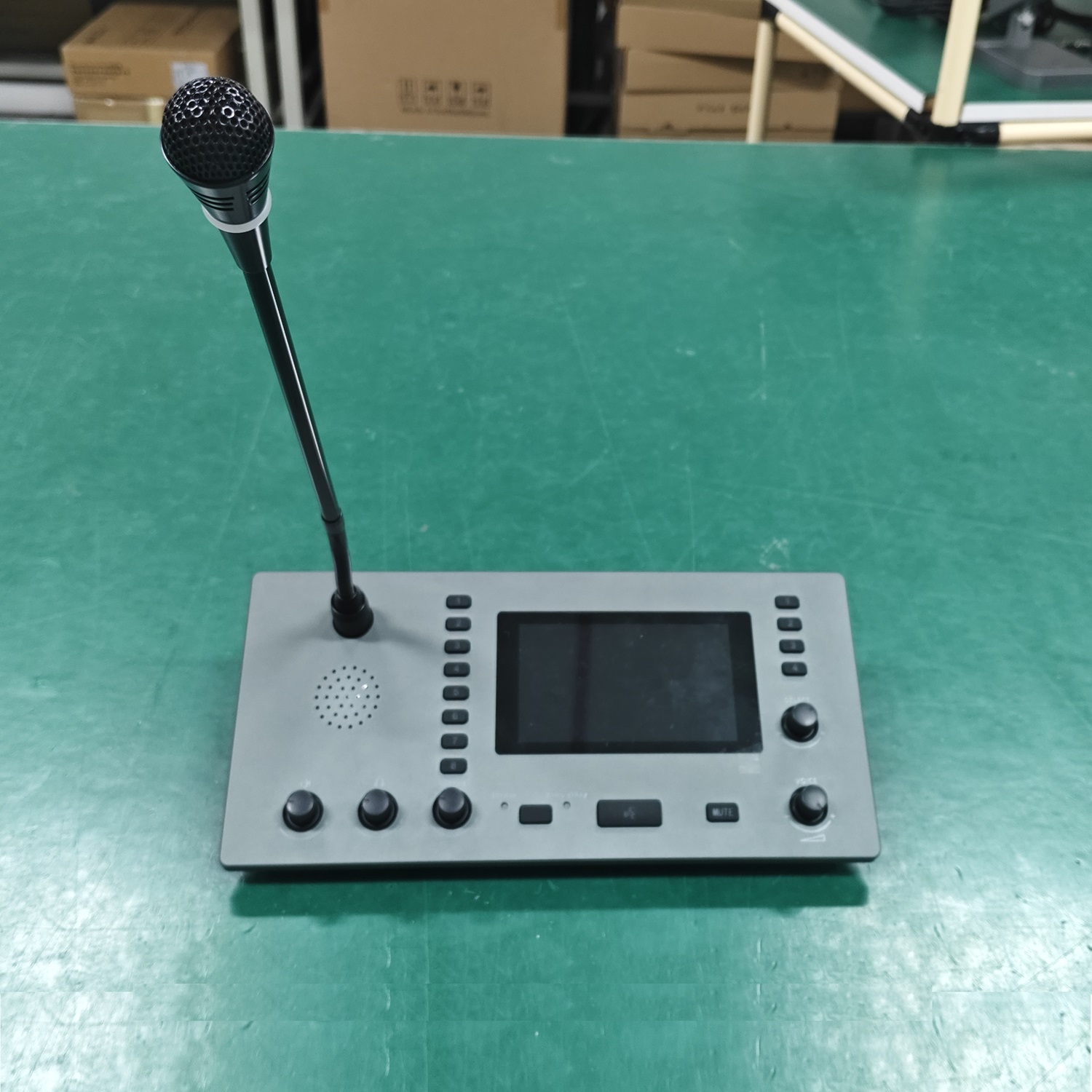

Button Description

1. Microphone Boom Holder: Connects to the microphone boom for capturing the interpreter’s voice.
2. Preset Input Language Selection Buttons (8): Enables rapid selection of preset input languages during relay interpretation.
3. 5-inch HD LCD Touchscreen: Facilitates unit configuration, language selection, and system settings.
4. Monitor Speaker: Audits selected audio channels (floor audio or other interpreters’ outputs).
5. Preset Output Language Selection Buttons (4): Instantly activates predefined output languages.
6. Output Channel Selector Knob: Navigates through 4 output language channels.
7. Speaker Volume Knob: Adjusts monitor speaker output level.
8. Headphone Volume Knob: Controls headphone audio intensity.
9. Input Channel Selector Knob: Selects input languages by rotating after pressing the Interpreter Relay button and a preset input language button.
10. FLOOR Indicator: Illuminates when floor channel is active.
11. Interpreter Relay Button: Toggles between Floor channel (original audio) and Auto-relay (relay interpretation) modes.
12. Auto-Relay Indicator: Lights up when accessing other interpreters’ channels.
13. Microphone Activation Button: Engages microphone boom, triggers on-screen timer, and illuminates red when active.
14. Mute Button: Silences microphone input.
15. Output Channel Gain Knob: Adjusts microphone signal amplification.
